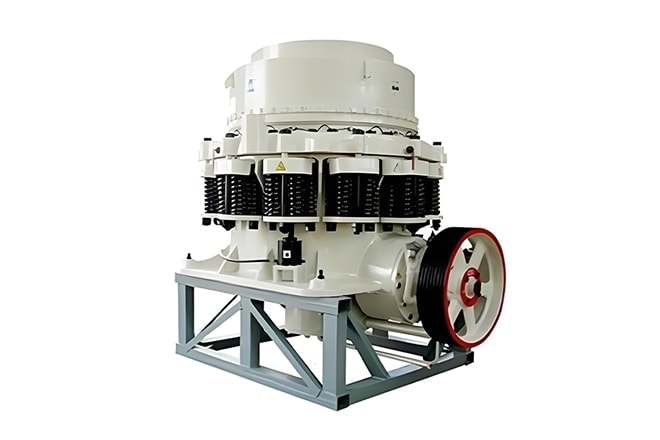

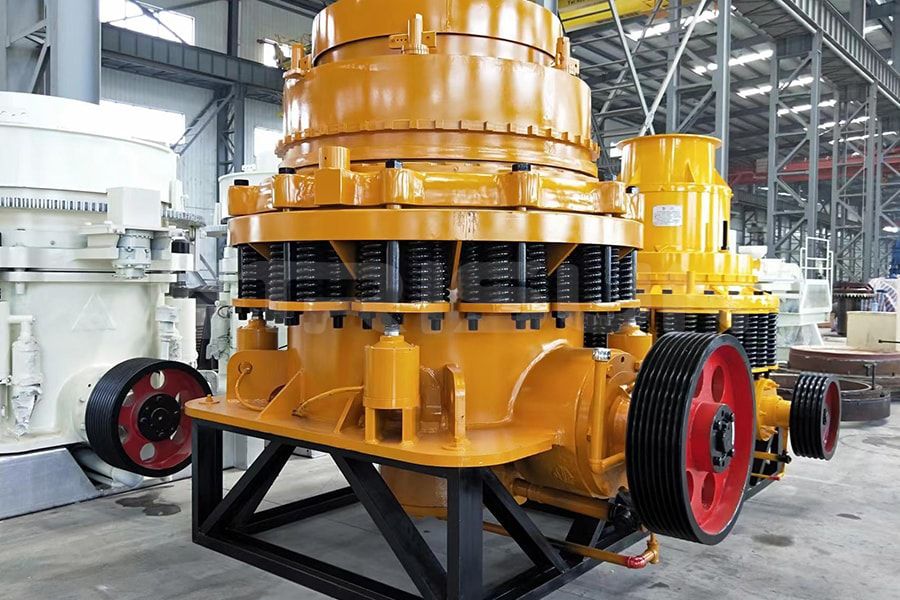

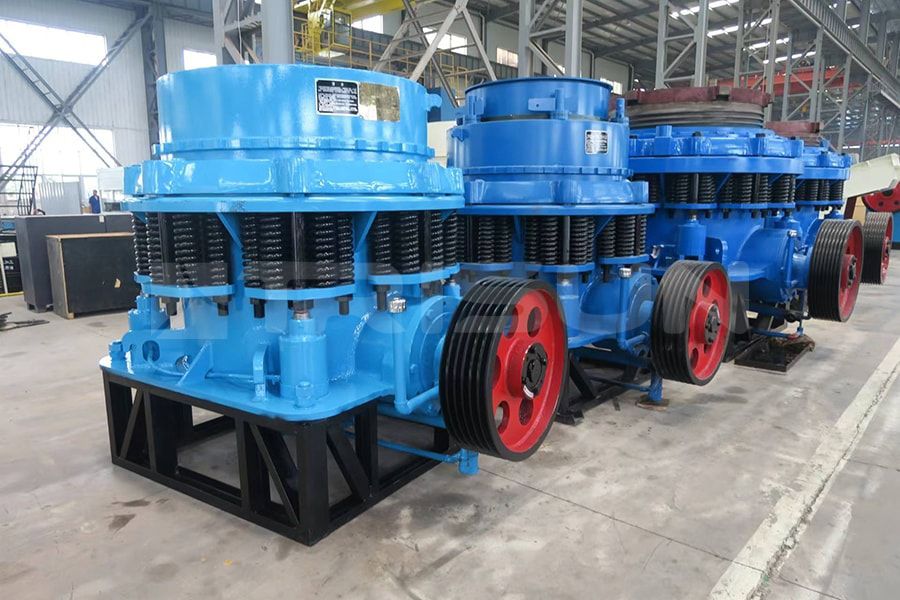

CS Symons cone crusher

CS Symons cone crusher

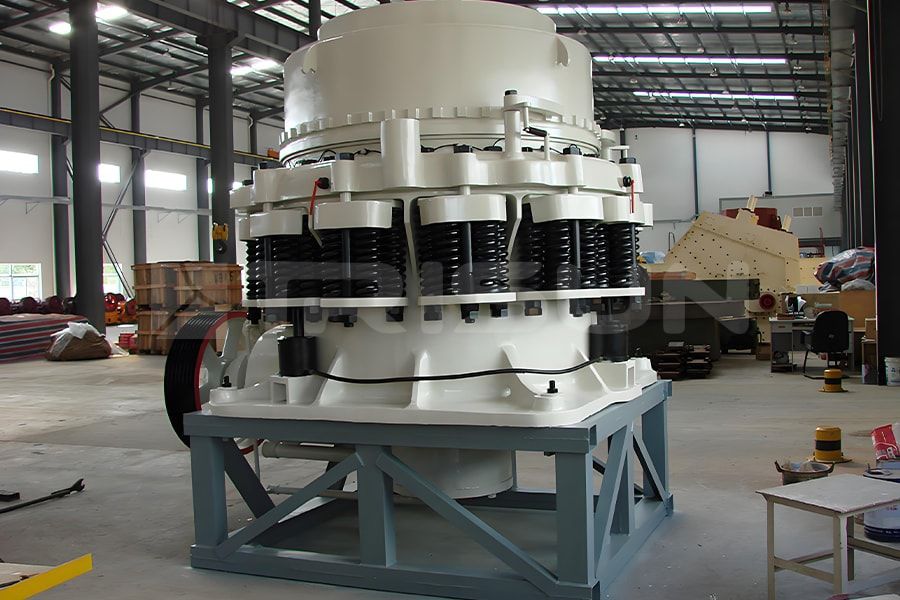

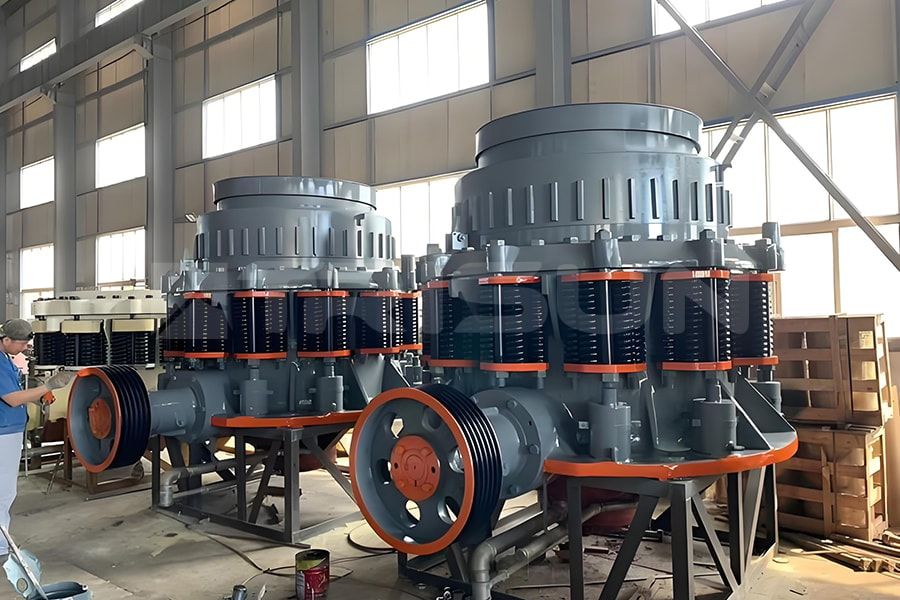

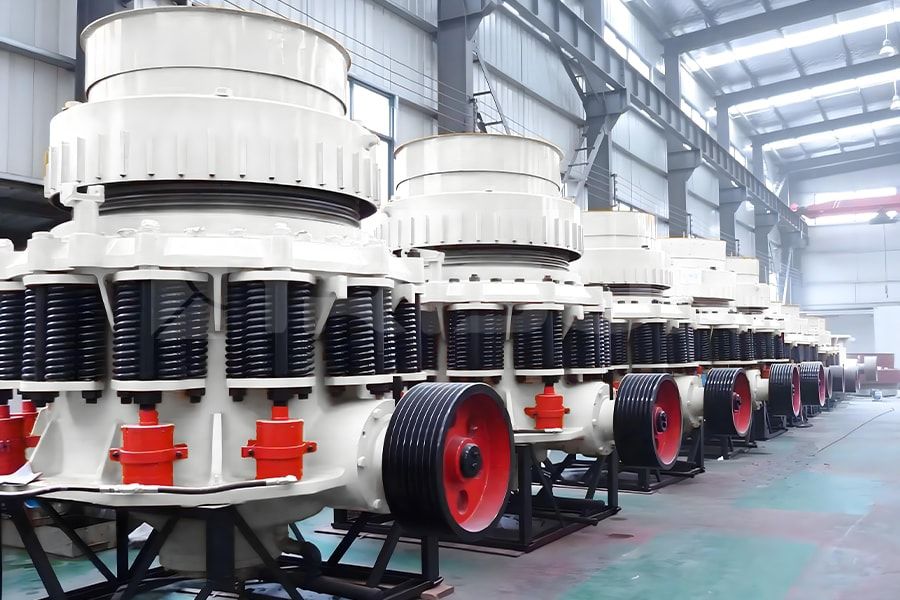

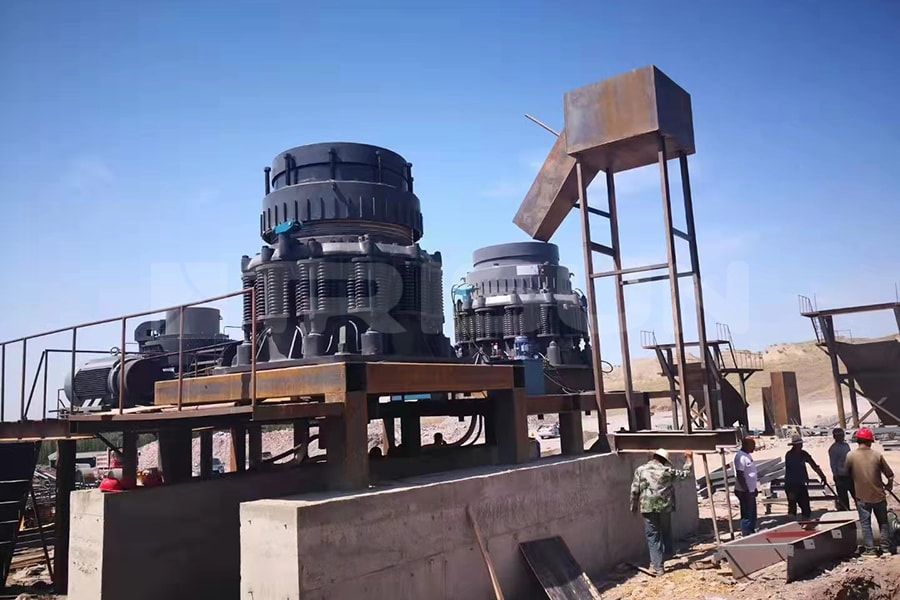

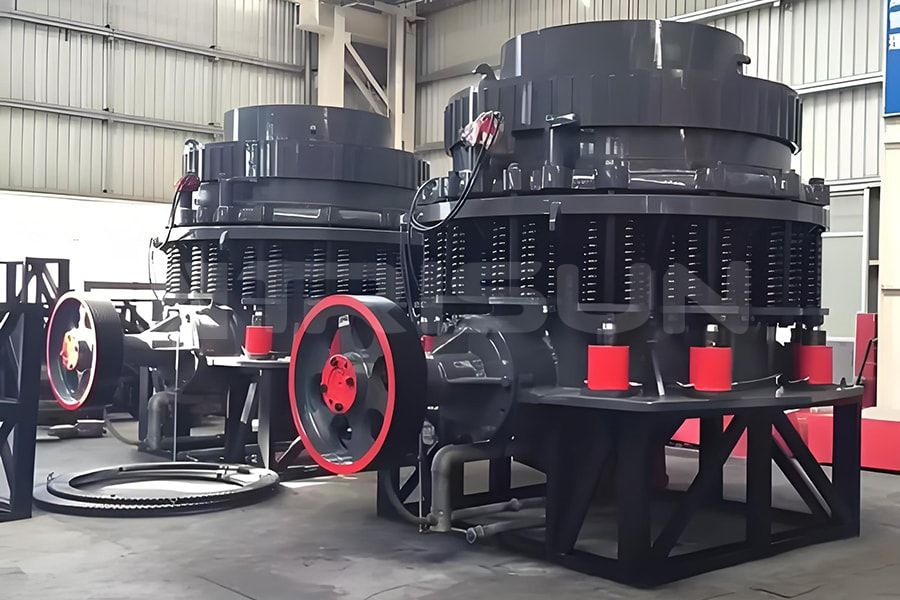

CS Symons cone crusher is an improved, optimized and updated replacement product for PY spring cone crusher. Compared with the PY spring cone crusher, it has the characteristics of reliable structure, high production efficiency, convenient adjustment and economical use. The spring safety system is its overload protection device, which allows metal objects to pass through the cavity without harming the crusher. It adopts dry sealing form to isolate the stone from the lubricating oil and ensure reliable operation. It is widely used in metal and non-metal mines, cement plants, construction, metallurgy and other industries, such as crushing non-ferrous metal ores, granite, limestone, quartzite, sandstone, pebbles, etc. According to customer needs, TRISUN mainly supplies standard and short-head Symons cone crushers with mantle diameters from 3 to 7 feet.

  • Features & Properties
  • Technical Specification

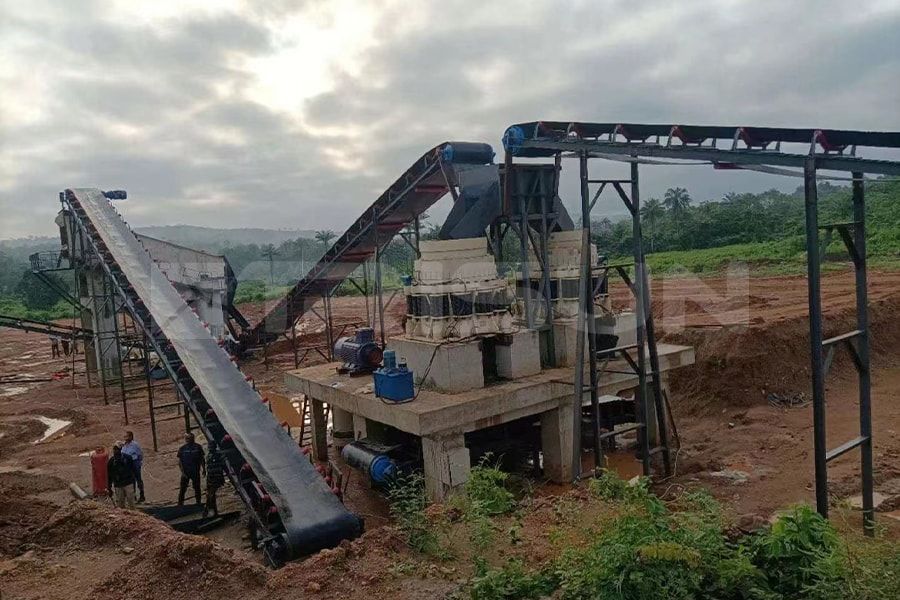

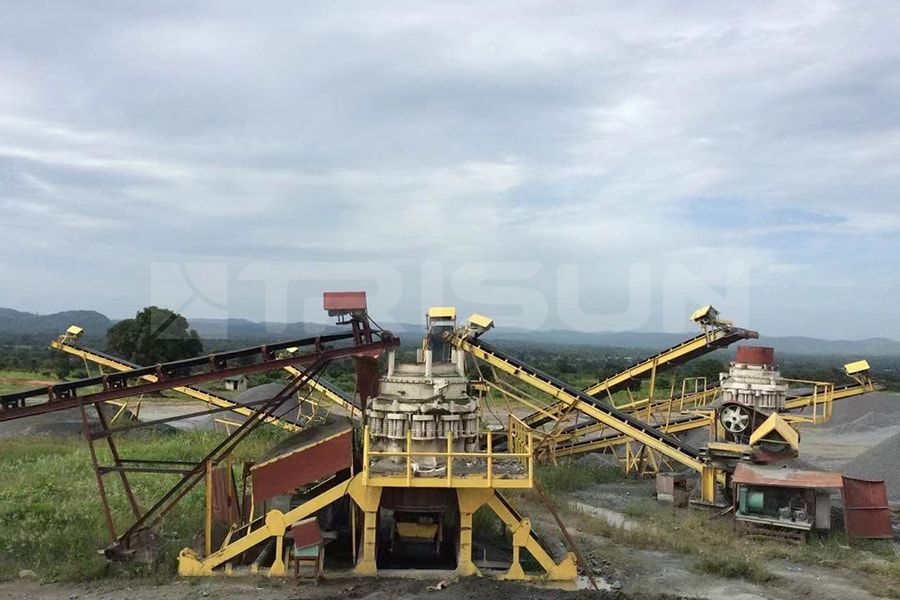

  • Gallery
  • Related Products

1. Users can choose a cavity with high efficiency, uniform particle size and suitable particle shape according to production needs.

2. The unique dust-proof sealing structure extends the lubricating oil replacement cycle and the service life of parts.

3. Key parts are made of special materials to support large crushing force.

4. The concave is long, the stroke, the crushing force and the capacity are large.

5. It adopts hydraulic cavity cleaning system, which is easy to operate and reduces downtime.

6. Stable performance, low operating cost and long service life of wearing parts.

Mantle diameter Model Cavity Maximum feeding size (mm) Discharge opening range (mm) Capacity (t/h) Power(kw) Weight (t) Dimensions (mm)
3’

CSB75

F 85 9~22 45~91 75

14.5 2656×1746×2410

C 150 13-38 59~163
XC 152 25-38 118~163
CSD75

F 35 3~13 27~90 15
M 65 5~16 36~100
C 85 6~19 59~129
4 ¼’

CSB160

F 115 13~31 109~181 160-185 26.5 2958×2354×3156

M 178 16~38 132~253
C 205 19~51 172~349
XC 220 25~51 236~358
CSD160

F 54 3~16 36~163 27
M 76 6~16 82~163
C 89 8~25 109~227
XC 113 16~25 209~236
5 ½’

CSB240

F 178 16~38 181~327 220-240

51 3941×2954×3771
M 205 22~51 258~417
C 228 25~64 299~635
XC 313 38~64 431~645
CSD240

F 60 5~13 90~209 52
M 76 6~19 136~281
C 113 10~25 190~336
XC 125 13~25 253~336
7’ CSB315

F 236 19~38 381~726 315

90 4613×3251×4732
M 284 25~51 608~998
C 314 31~64 789~1270
XC 391 38~64 880~1361
CSD315

F 89 5~16 190~408 92
M 113 10~19 354~508
C 151 13~25 454~599
XC 172 16~25 512-680

Note: All features, functionality and other product specifications are subject to change without notice or obligation.

FAQ

Q: What are the main types and distinctions of cone crushers?

A: Cone crusher is a widely used type of mining crusher. According to different classification methods, there are the following types:

1) According to the way of maintaining crushing force: spring cone crushers and hydraulic cone crushers.

2) According to movement support structure: Sliding bearing type, rolling bearing type and hybrid type.

3) According to rotation speed: Low speed cone crushers, medium speed cone crushers and high speed cone crushers.

4) According to the structure of the spindle: fixed spindle cone crushers and rotating spindle cone crushers.

Q: What is the difference between CS Symons cone crusher and spring cone crusher?

A: 1) Adjustment method of the discharge opening of the cavity. The spring cone crusher uses a spring system to adjust the discharge opening of the cavity, while the CS cone crusher uses a hydraulic system to control the discharge opening of the cavity. Therefore, the spring cone crusher has a relatively simple structure and low maintenance costs, while the CS cone crusher has higher automation and adjustment accuracy.

2) Material processing capacity and particle size control. Spring cone crusher is suitable for harder materials, such as ore, limestone, etc., and can crush them into smaller particles. The CS cone crusher is more suitable for medium-hardness materials, such as gypsum, marble, etc., and can achieve finer particle control.

3) Application occasions. Spring cone crushers are commonly used in mining, building materials, metallurgy and other industries, while CS cone crushers are more commonly used in cement, chemicals, building materials and other industries.

4) Energy consumption and production. Spring cone crusher is relatively energy-saving because of its simple structure and relatively small power system. The CS cone crusher is relatively energy-consuming because its structure is more complex and requires a larger power system to achieve higher capacity.

5) Maintenance. The maintenance of the spring cone crusher is relatively simple, and the spring and lubricating oil need to be replaced regularly. The CS cone crusher requires more complex maintenance, such as maintenance and cleaning of the hydraulic system.

Q: What are the installation and commissioning precautions for CS cone crusher?

A: 1) The crusher should be installed on a level concrete foundation and fixed with anchor bolts.

2) When installing, attention should be paid to the verticality of the crusher to the ground.

3) After installation, check whether the bolts are loose and tighten them if so.

4) The power supply and control switches should be configured according to the power of the crusher.

5) After the inspection, a no-load test run should be carried out before production begins.

Q: What are the precautions for CS cone crusher maintenance?

A: 1) The injected lubricating oil must be clean and the seal must be good.

2) Newly installed clamps must be inspected frequently.

3) Pay attention to whether all parts of the machine are working properly.

4) Pay attention to check the wear degree of wear parts and replace them in time.

5) If the bearing oil temperature rises, stop the machine immediately and check.

6) If there is an impact sound when the gear is running, stop the machine immediately for inspection.
