JBT Concrete mixer with pump

JBT Concrete mixer with pump

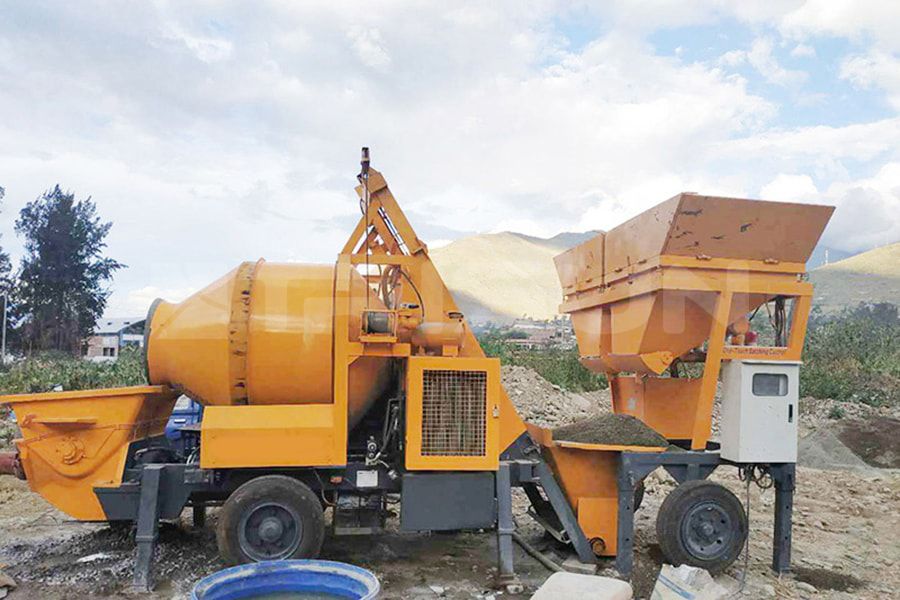

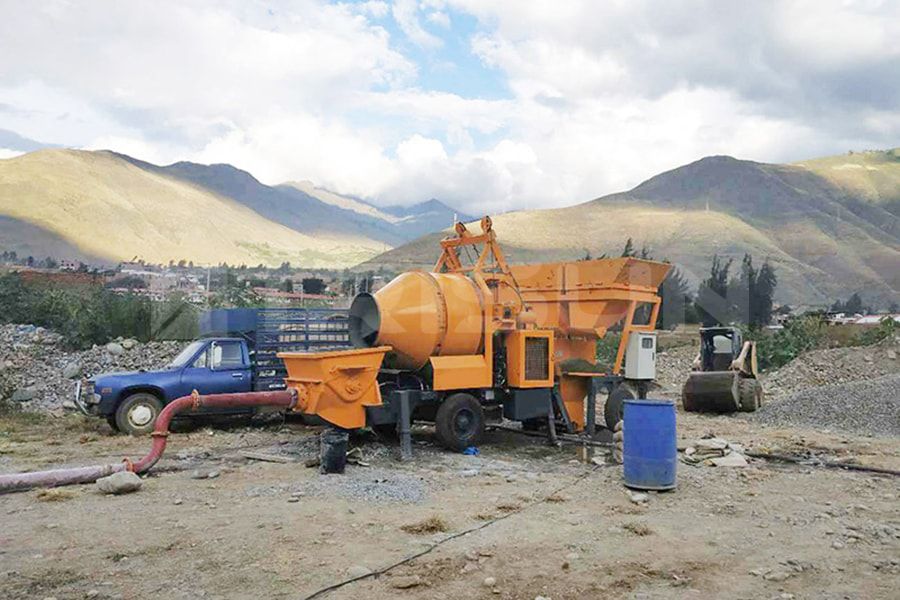

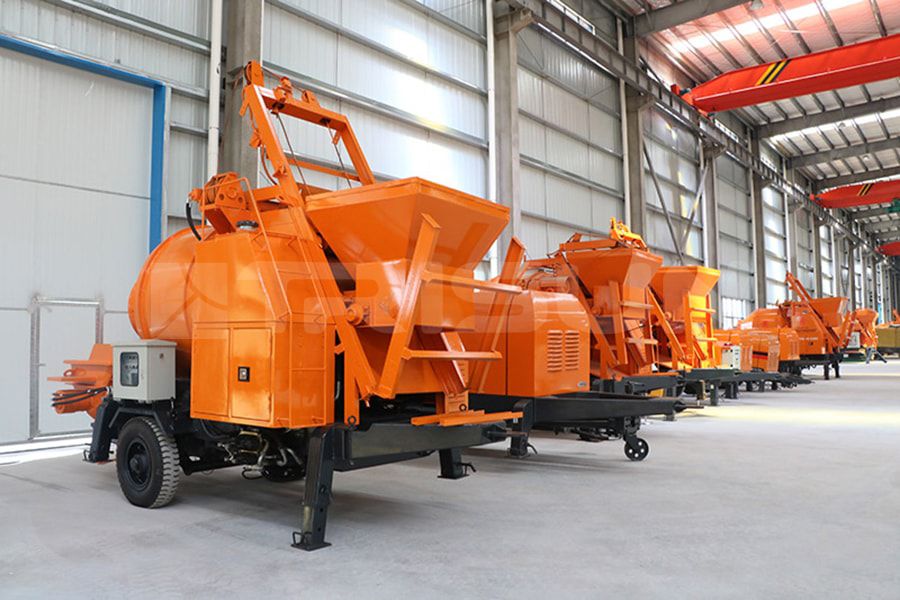

Concrete mixer with pump, also known as 3-in-1 or 4-in-1 concrete pump, is a special equipment used at construction sites to mix sand, gravel and cement into concrete for transportation and pouring. It is a concrete pump that integrates loading, mixing and pumping. It can realize on-site mixing and continuous pumping, which greatly improves construction efficiency. It has the characteristics of fast mixing, good pumping performance, large pouring range, simple operation, stable performance, flexible maneuverability and convenient transfer. TRISUN provides customers with diesel or electric concrete mixer with pumps with a mixing capacity of 15 cubic meters per hour and a pumping capacity of 30 to 50 cubic meters per hour. At the same time, the concrete mixer with pump can also be used with a mixer truck or a towed portable mixer to achieve greater mixing capacity. In order to achieve higher batching accuracy, it can be equipped with a small batching machine and a small loader provided by TRISUN.

  • Features & Properties
  • Technical Specification
  • Gallery
  • Related Products

1. It integrates concrete mixer and pump, saving machine weight and transportation size.

2. It is convenient for towing on complex road conditions and has high work efficiency.

3. It reduces the number of operators, labor costs and labor intensity.

4. It has a wide range of power options and can be electric, making it highly adaptable.

5. It is simple and convenient to operate and comes with a remote control.

6. It adopts a double-cylinder fully hydraulic pumping system and can pump large aggregate concrete with stable, safe and reliable performance.

Model JBT30 JBT40 JBT50
Pumping capacity 30m³/h 40m³/h 50m³/h
Mixing capacity 18m³/h 18m³/h 18m³/h
Maximum outlet pressure 6Mpa 8Mpa 10Mpa
Engine brand Yuchai Yuchai/Weichai/Cummins Yuchai/Cummins
Engine power 70HP(52kW) 82-115HP(60-85kW) 125HP(92kW)
Weight 5300kg 5600kg 7000kg
Overall dimensions 5100*2200*2450mm 5100*2200*2450mm 5100*2200*2450mm

Note: All features, functionality and other product specifications are subject to change without notice or obligation.

FAQ

Q: What precautions should be taken when using a concrete mixer with pump?

A: 1). Pumpability of concrete. During the pumping process, the pumped concrete should meet the pumpability requirements. If necessary, the mix ratio of pumped concrete should be determined through pumping trial conditions.

2). Placing rules. During the pumping process, after the concrete pump is started, an appropriate amount of water should be pumped first. After moistening the hopper, concrete cylinder and pumping pipe of the concrete pump and other parts that are in direct contact with the concrete, one of the following three methods should be used to lubricate the above parts: ① Cement mortar ② Cement mortar of 1:2 ③ Cement mortar with other ingredients except coarse aggregate.

3). Pumping status. When starting pumping, the concrete pump should be running at a slow and constant speed, and then gradually accelerate. At the same time, the pressure of the concrete pump and the working conditions of each system should be observed. After each system is working normally, pumping at normal speed can be carried out. In addition, the pumping should be carried out as continuously as possible to keep the concrete cylinder piston running at its maximum stroke, so as to maximize the efficiency of the concrete pump and evenly wear the concrete cylinder in the length direction.

Q: What is the difference between a concrete mixer with pump and a stationary pump?

A: Both are equipment used for pouring concrete, but the concrete mixer with pump has its own hoist and drum, which can mix materials on site. In other words, the concrete mixer with pump is equipped with an additional loading and mixing device than the ordinary concrete pump, which makes it equivalent to a small concrete plant, so different types of concrete pumps can be installed according to customer's needs. If electricity is inconvenient, a high-power generator can be installed, which is flexible in configuration and very convenient.

Q: Can the concrete mixer with embedded pump be installed on a truck?

A: TRISUN can supply truck-mounted concrete mixer with pump. The truck-mounted concrete mixer with pump combines the advantages of a stationary pump and a pump truck, realizing three-in-one mixing, pumping and transportation. It is more flexible and maneuverable than a  stationary pump. It does not require hauling, loading, unloading, installation and fixation. It has a high equipment utilization rate. It has better pumping performance and faster pumping speed than a boom pump truck, and is relatively economical at the same time.

Q: Compared with the traditional manual pouring with buckets, what are the benefits of using a concrete mixer with pump?

A: Compared with traditional manual pouring, pouring using a all-in-one concrete mixer with pump saves time, labor and cost. At the same time, using the concrete mixer with pump for pouring will not cause problems such as gaps or concrete segregation, and is very efficient. For concrete pumping within a horizontal distance of 200 meters and a vertical height of 70 meters, there is no need to move equipment or manually transport concrete. Just use the remote control to control the concrete mixer with pump to pump the concrete along the pipe to the pouring point.

Q: What are the main features of the concrete mixer with pump?

A: 1). It is equipped with a mixer, which is equivalent to a small cocnrete mixing plant and can mix concrete on site;

2). The S valve is equipped with a floating wear-resistant ring, which automatically compensates for wear and has good sealing performance;

3). The spectacle plate and cutting ring are made of high-hardness and wear-resistant alloy materials for longer life;

4). The outlet pressure is high and can meet the pumping requirements of high-rise buildings and long-distance construction;

5). The hydraulic system adopts a dual-circuit system with fast reversing speed and high efficiency;

6). Hydraulic oil cooling adopts an air-cooled system with simple structure, fast cooling, good economy and low failure rate.

7). It has a reverse pump function, which greatly reduces pipe blockage;

8). Its electrical box is equipped with a wired remote control handle for easy operation.
