CM Concrete mixer truck

CM Concrete mixer truck

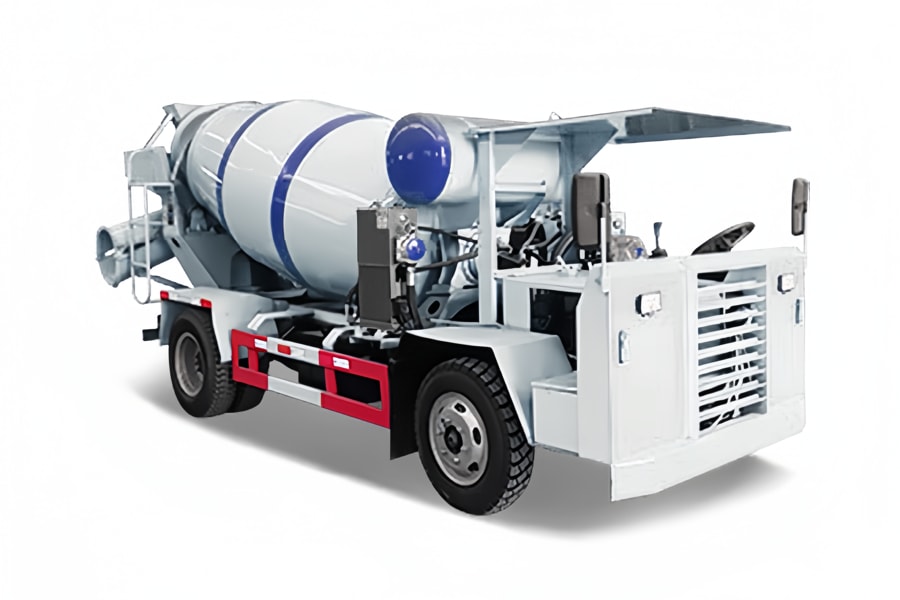

A concrete mixer truck refers to a special concrete transportation equipment equipped with a concrete mixer on the chassis of a truck. It is also called a truck-mounted concrete mixer. The concrete mixer truck is an ancillary equipment specially used to transport commercial concrete produced by concrete plants. Its characteristics are that it can maintain uniform quality of concrete for large volume and long distance, and it can avoid bleeding, stratification, segregation and premature setting. It is suitable for the construction of roads, airports, water conservancy projects and large-scale construction projects. According to the requirements of the customer's country on chassis brand, emission standards, number of axles, etc., TRISUN supplies 2 to 20 cubic meter mixer trucks with Cummins and other engines on SINOTRUK, Shacman, Dongfeng, FAW and other chassis. In addition, TRISUN also customizes mixer trucks, mixing drums, crawler mixers, three-wheel mixers, orbital mixers, low tunnel mixers, underground mining mixers, etc. with various capacities according to customer project requirements.

HAMAC ico inquireInquire Now
  • Features & Properties
  • Technical Specification
  • Gallery
  • Related Products

1. Large capacity. The capacity of TRISUN's mixer trucks is usually 6-12 cubic meters. Large-capacity mixer trucks can mix a large amount of concrete at one time, thereby reducing the time and workload of multiple mixing and improving work efficiency, especially suitable for commercial concrete.

2. Good effect. The mixer truck uses a special mixing device to ensure the uniformity and quality of the concrete, thereby improving the strength and durability of the concrete. Also, rotary mixing is very effective in preventing separation of concrete components.

3. High automation. The mixer truck is equipped with a control system for the mixing device to ensure mixing time, speed and quality.

4. High adaptability. The mixer truck can adapt to various complex transportation environments, such as cities, mountainous areas, highways, etc., and can also adapt to different concrete ratios including ordinary concrete, high-performance concrete, self-leveling concrete, etc. and working conditions, improving flexibility and application range.

5. Simple operation and maintenance. Only one driver is needed to complete mixing, transportation, discharging, cleaning and other tasks, thereby reducing labor costs and management costs.

6. Self-discharging function. Concrete mixer trucks usually have a self-discharging function, which can discharge the mixed concrete from the mixing drum to the construction site, reducing the need for additional handling equipment.

7. Energy-saving and environmentally friendly. Low noise and low dust reduce environmental pollution and energy costs.

  Model CM4 CM6 CM8 CM10 CM12
Chassis Brand Yuejin Sinotruk Shacman Shacman Shacman
Drive mode 4×2 4×2 6×4 6×4 6×4
Engine power 132HP (97kW) 150HP (110kW) 336HP (247kW) 336HP (247kW) 345HP (253kW)
Emission standard China VI China VI China VI China VI China VI
Mixing drum Capacity 4m³ 6m³ 8m³ 10m³ 12m³
Thickness 4-6mm 4-6mm 4-6mm 4-6mm 4-6mm
Residual rate ≤0.5% ≤0.5% ≤0.5% ≤0.5% ≤0.5%
Charging speed ≥1.5m³/min ≥1.5m³/min ≥2m³/min ≥2m³/min ≥2m³/min
Discharging speed ≥2m³/min ≥2m³/min ≥3m³/min ≥3m³/min ≥3m³/min
Hydraulic system Reducer FUXIN FUXIN TOP TOP TOP
Pump SUNNY SUNNY PMH PMH PMH
Motor SUNNY SUNNY PMH PMH PMH
Overall size 6750*2250*3380mm 7300*2350*3650mm 9400x2500x3820mm 9400x2500x3850mm 9800x2500x3950mm

Note: All features, functionality and other product specifications are subject to change without notice or obligation.

FAQ

Q: What should I pay attention to when driving a concrete mixer truck?

A: Experienced drivers have general knowledge of safe driving. It should be reminded here that since concrete is in a fluid state, when the truck makes a sharp turn, the speed must be reduced to prevent the centrifugal force generated during the turn from destabilizing the truck.

Q: What are the consequences if the mixer truck is loaded with excess concrete?

A: If a mixer truck with a capacity of less than 9 cubic meters is loaded with excess concrete, the truck will leak concrete when climbing; if it is a mixer truck with a capacity of 12 cubic meters, the concrete may be layered, the sand content of the concrete will be low, and the aggregate particle size will be large, which will affect the quality of the concrete and construction safety.

Q: In what year are new mixer trucks generally more likely to have problems?

A: If it is used for dry mixing, it is usually the fifth year, and for wet mixing it is usually the seventh year. Generally, mixer trucks are more likely to have problems after three years. Whether there will be problems with the mixer truck has a lot to do with the driver's maintenance and the manufacturer's quality control.

Q: What should I do if the concrete solidifies in the mixer truck?

A: The main components of concrete after solidification are dicalcium silicate and tricalcium silicate. Theoretically, hydrochloric acid could react with it to release it from its solid form. But in fact it is difficult to achieve because the opening of the mixing drum is small, the amount of hydrochloric acid is difficult to control, and hydrochloric acid can also react with the drum. If this happens, the drum is often cut open with electric or gas cutting, and then the solidified concrete is mechanically broken.

Q: What does the drum of a concrete mixer truck mean?

A: It generally refers to the mixing truck assembly, that is, things other than the chassis, including the mixing truck and supports, hoppers, hydraulic systems, water tanks and pipelines, operating linkage mechanisms, etc.

Q: Generally speaking, is the hydraulic system of a Chinese manufacturer's concrete mixer truck made in China or imported?

A: The manufacturer will configure the mixer truck according to its capacities and customer needs. For mixer trucks with a capacity of less than 6 cubic meters, the standard configuration is a Chinese system (optional imported), and for a mixer truck with a capacity of 6 cubic meters or more, the standard configuration is an imported system.

Q: For a small-capacity mixer truck, which hydraulic pump is better, a fixed pump or a variable pump?

A: The hydraulic pump is one of the main components of the mixer truck. Generally speaking, mixer trucks with a capacity of less than 6 cubic meters are equipped with a fixed pump. However, optional variable pumps are also available for customers to choose from.

Q: What is the welding process of concrete mixer truck?

A: Generally speaking, manufacturers use fully automatic seamless welding for the entire truck, and both circumferential and longitudinal seams are fully automatic seamless welding.

Q:Can I import a mixing drum from TRISUN and install it on a locally purchased truck chassis and assemble them together?

A: Of course yes. Due to the complexity of the import requirements for complete trucks in some countries, importing drums may be a more realistic and convenient choice. You can send us the data of your existing truck chassis in as much detail as possible, including brand, model, power, power extraction mode, structural drawings, etc. We will customize and manufacture a suitable mixing drum for you to ensure a problem-free assembly process.
